Plug-n-Play Suite
HoloPoster™
An 83-inch LED poster that wheels in on its own base and folds to half its height to go home again. One power cable, one HDMI, and it is running. No rigging, no ground support, no crew.

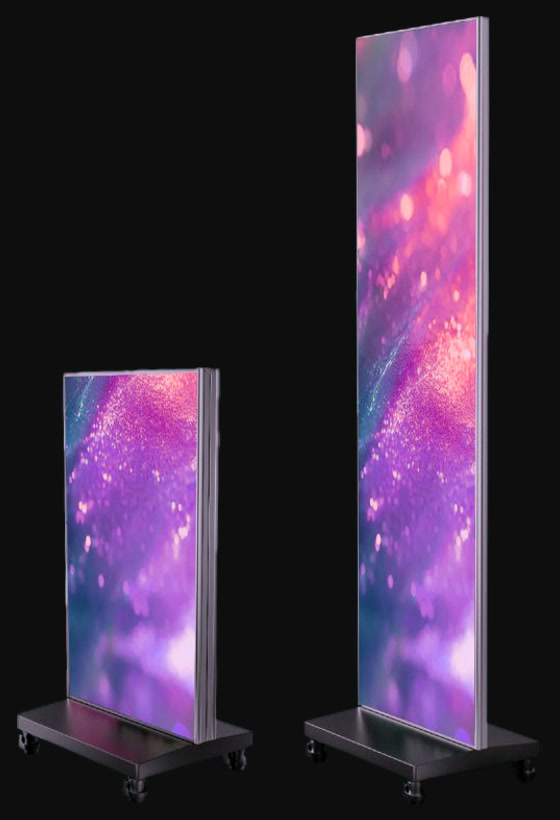

HoloPoster on its wheeled base. Nothing else needed to stand it up.
It folds in half. That is the whole point.

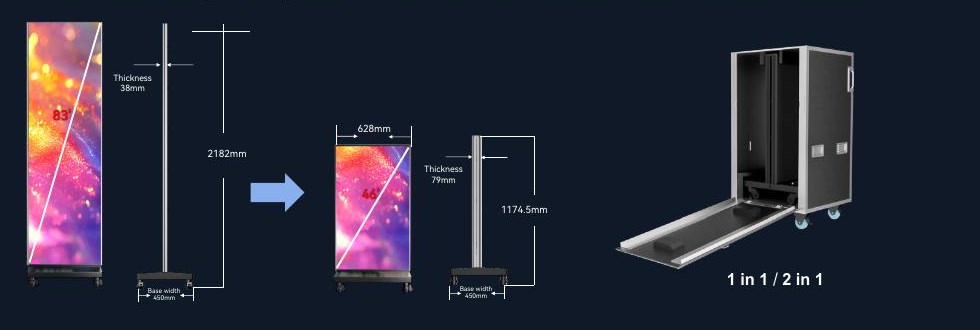

A 7′ 2″ display does not fit in a lift, a van or a store cupboard. This one folds down to 3′ 10″ and rolls onto its own flight case ramp.
Unfolded 7′ 1.9″ at 1.5″ thick. Folded 3′ 10.2″ at 3.1″. Base width 17.7″ throughout — 2182 / 1174.5 / 450mm. The case takes one unit or two.
Plug it in and put something on it
Android is built in. Load content on a USB stick, push it over Wi-Fi, or schedule it from the cloud and leave the poster alone. Sync and async both work, so it can run as one screen in a spliced wall or on its own.
HDMI in and HDMI out, USB 3.0, RJ45, Wi-Fi and IR. Screen mirroring and remote control are options rather than another box to carry.
Front maintenance. Modules come off the face, so the poster does not need to be turned around or taken off the base to service it.
Magnetic hard connection between modules, on a two-cabinet private mould. That is what keeps the face flat, which is the difference between a poster and a panel that looks like panels.
Where it earns its keep
Anywhere the content has to arrive, work, and leave again.
Transport hubs
Wayfinding and advertising that moves when the concourse layout changes.
Retail and malls
Promotional weight at the entrance without building anything into the fabric.
Events and stages
Sponsor panels, entrances and holding screens. In and out inside a get-in.
Lobbies and showrooms
A permanent-looking installation you can still relocate on a Tuesday.
Specifications — interior
Three pitches on one interior chassis. Everything except pixel pitch and resolution is common across the range. The i is the environment letter and it means interior. The exterior model is below.
| Model | HoloPoster™ 1.5i | HoloPoster™ 1.8i | HoloPoster™ 2.5i |
|---|---|---|---|
| Pixel pitch | 1.5mm | 1.8mm | 2.5mm |
| Resolution, unfolded | 384 × 1296 | 320 × 1080 | 240 × 810 |
| Resolution, folded | 384 × 648 | 320 × 540 | 240 × 405 |
| Screen size | 83 inch | ||
| Viewable area | 23.6″ × 6′ 7.7″ (600 × 2025mm) | ||
| Module size | 300 × 168.75mm (11.8″ × 6.6″) | ||
| Brightness | 0–600 nits, adjustable | ||
| Contrast | 4000:1 | ||
| Grey scale | 14 bit | ||
| Refresh rate | 3840Hz / 7680Hz | ||
| Viewing angle | 160° horizontal / 140° vertical | ||
| Video input | HDMI in, USB 3.0 ×1, RJ45 ×1 | ||
| Control | RJ45, USB-B, Wi-Fi, IR | ||
| Audio | External audio ×1 | ||
| Input voltage | 100–240V, 50/60Hz | ||
| Power | 230W average, 690W maximum | ||
| Size, unfolded | 2′ 0.7″ × 7′ 1.9″ × 17.7″ (628 × 2182 × 450mm) | ||
| Size, folded | 2′ 0.7″ × 3′ 10.2″ × 17.7″ (628 × 1174.5 × 450mm) | ||
| Weight | 110 lb per unit (50kg) | ||
| Installation | Floor standing on supplied wheeled base | ||
| Working temperature | 0°C to 40°C | ||
| Working humidity | 10% to 65% RH | ||
| Storage temperature | −20°C to 50°C | ||
| Service life | 100,000 hours | ||
Outside, and six across
HoloPoster™ Fold 1.8E. The same folding poster, built IP65 for outdoor use. The E is the environment letter and it means exterior. It is a different chassis from the interior models above rather than the same unit with a cover on it, so the dimensions and the weight differ.
4000 nit so it holds up in daylight, wind protection level 8, and a 170° viewing angle. 1.875mm pitch, 7680Hz refresh, 40000:1 contrast, 110% NTSC. Tool-free bayonet maintenance, and the wheels adjust for ground that is not flat.
It folds down and displays on both sides, which the interior models do not. Ships in a flight case as standard.
Six side by side is exactly 16:9. The Fold cascades, and at six units the wall lands on a true 16:9 frame, so standard content fits without letterboxing and without a custom canvas.
Two screens splice in about six seconds, up to six units at 2K.

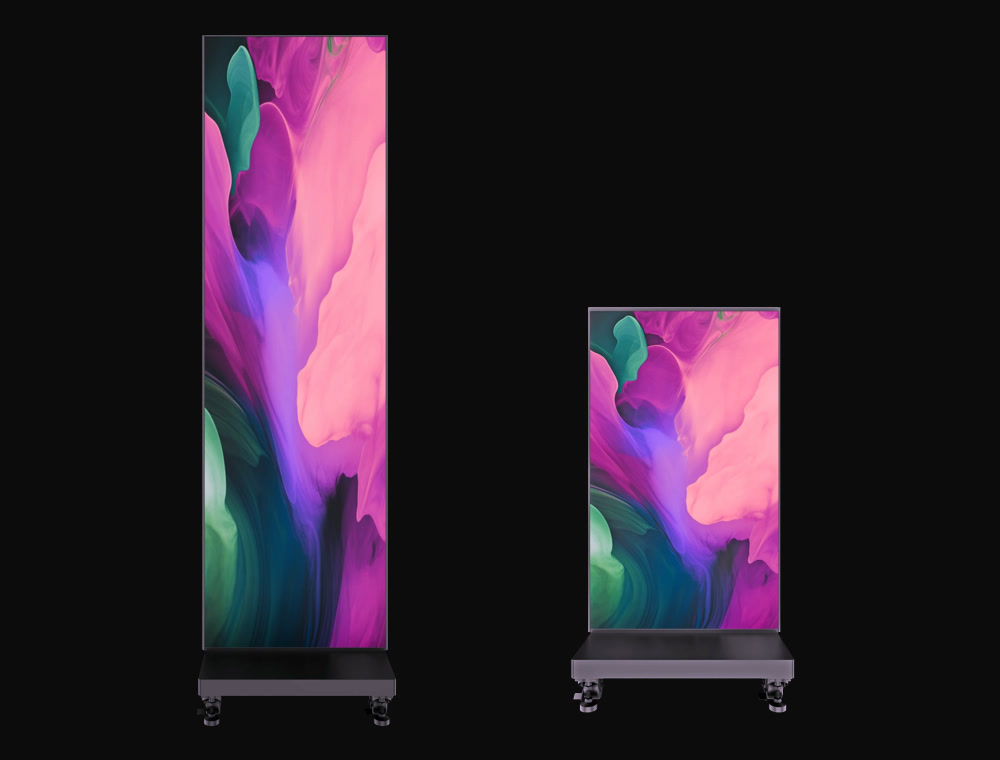

HoloPoster™ Fold 1.8E, deployed and folded.
| HoloPoster™ Fold 1.8E | Exterior |
|---|---|
| Ingress rating | IP65, dust and water |
| Wind rating | Level 8 |
| Pixel pitch | 1.875mm |
| Screen size | 83 inch |
| Viewable area | 23.6″ × 6′ 7.7″ (600 × 2025mm) |
| Resolution | 320 × 1080 unfolded, 320 × 540 folded |
| Module size | 300 × 337.5mm (11.8″ × 13.3″) |
| Brightness | 4000 nits |
| Contrast | 40000:1 |
| Refresh rate | 7680Hz |
| Viewing angle | 170° |
| Colour gamut | 110% NTSC |
| Power | 900W, common cathode |
| Interfaces | HDMI in, HDMI out, LAN, power — under a weatherproof cover |
| Size | 2′ 0.4″ × 7′ 2.6″ × 2.1″ (620 × 2200 × 54mm) |
| Weight | 110 + 44 lb, stand included (50 + 20kg) |
| Maintenance | Bayonet flat lock, tool free |
| Ships as | Flight case, standard |
Standard, or built for the room
Standard. Off the shelf, fast, and the right answer for most jobs. White LED, the specification in the table above.
Custom. Black-face LEDs for deeper contrast, a tailored PCB, and brightness and refresh tuned for broadcast or for a room with a lot of daylight in it.
Tell us about the space
Send us the room, the content and how often it has to move, and we will tell you the pitch and how many units it takes. We build these, so the answer comes from us rather than from a catalogue.
