Vision Series
HoloFilm™
Transparent LED film that goes straight onto the glass. No steel structure, no frame, no lost floor space. It is 2mm thick, it weighs 5kg per square metre, and when it is off the window still looks like a window.
It mounts like window film, not like a screen
Every other way of putting media on a storefront costs you the storefront. A conventional screen needs a frame, a frame needs structure, and the structure blocks the view you were selling in the first place.
HoloFilm is adhesive backed. Peel the release film, apply it to the inside of the glass, run the power and signal cable. That is the installation.
Because the substrate is flexible it takes a curve, a column or a cylinder without a custom frame, and it can be rolled for transport and storage.
The circuit is printed on a transparent PCB, so what you see through the film is the street, not a grid of wiring. When the content is off, the glass reads as glass.

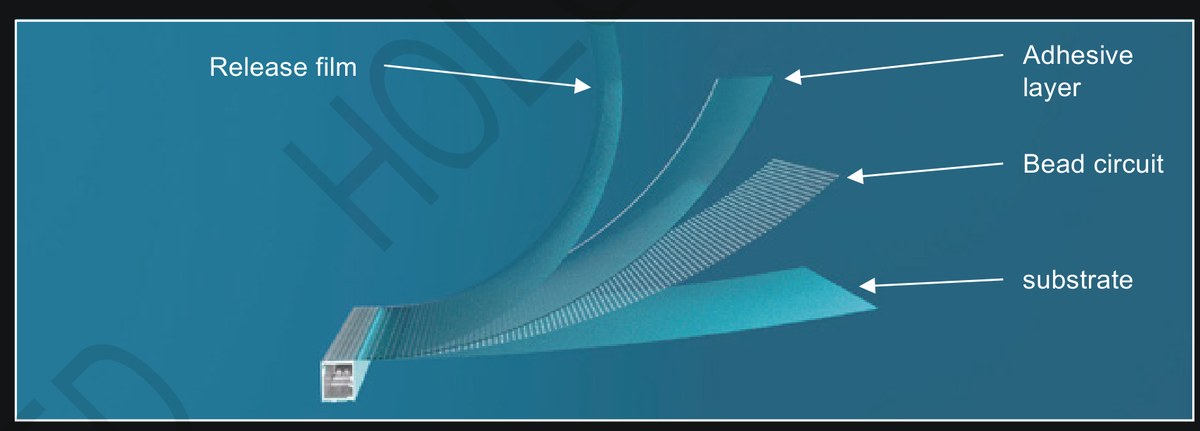

Four layers. Peel the release film and the adhesive goes onto the glass.
The module
One part, repeated. A HoloFilm wall is a run of identical 1000 by 240mm modules, so the size of the job changes the quantity and not the engineering.

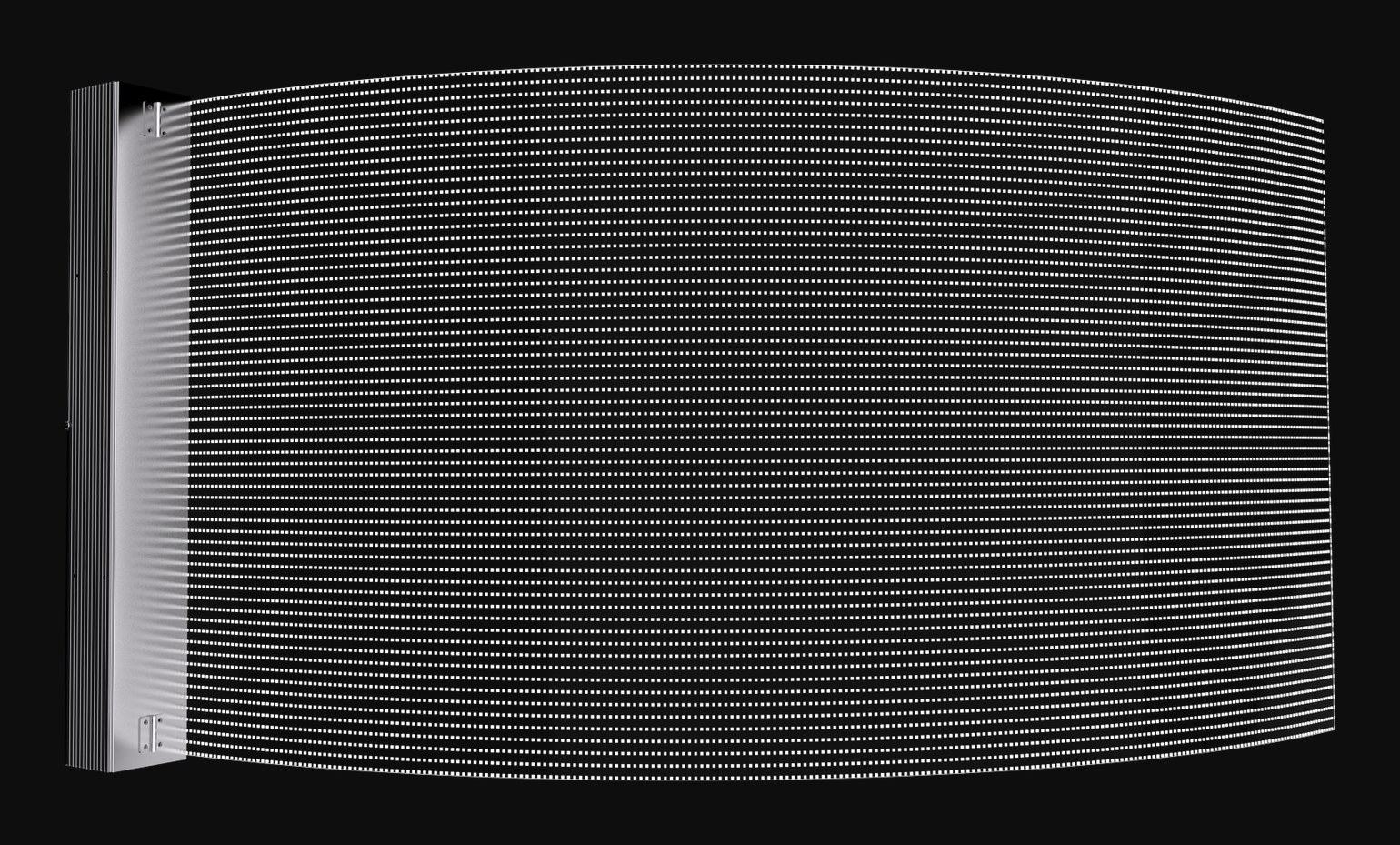

1000 × 240mm. 2mm thick. 1.3kg. The driver board sits along one short edge.

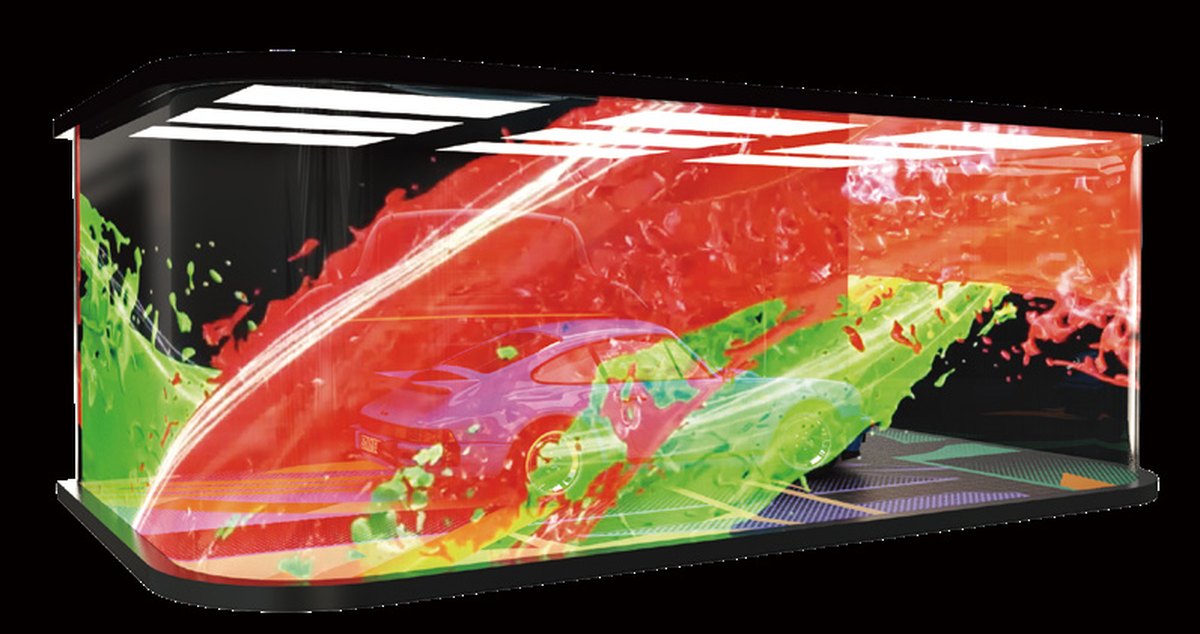

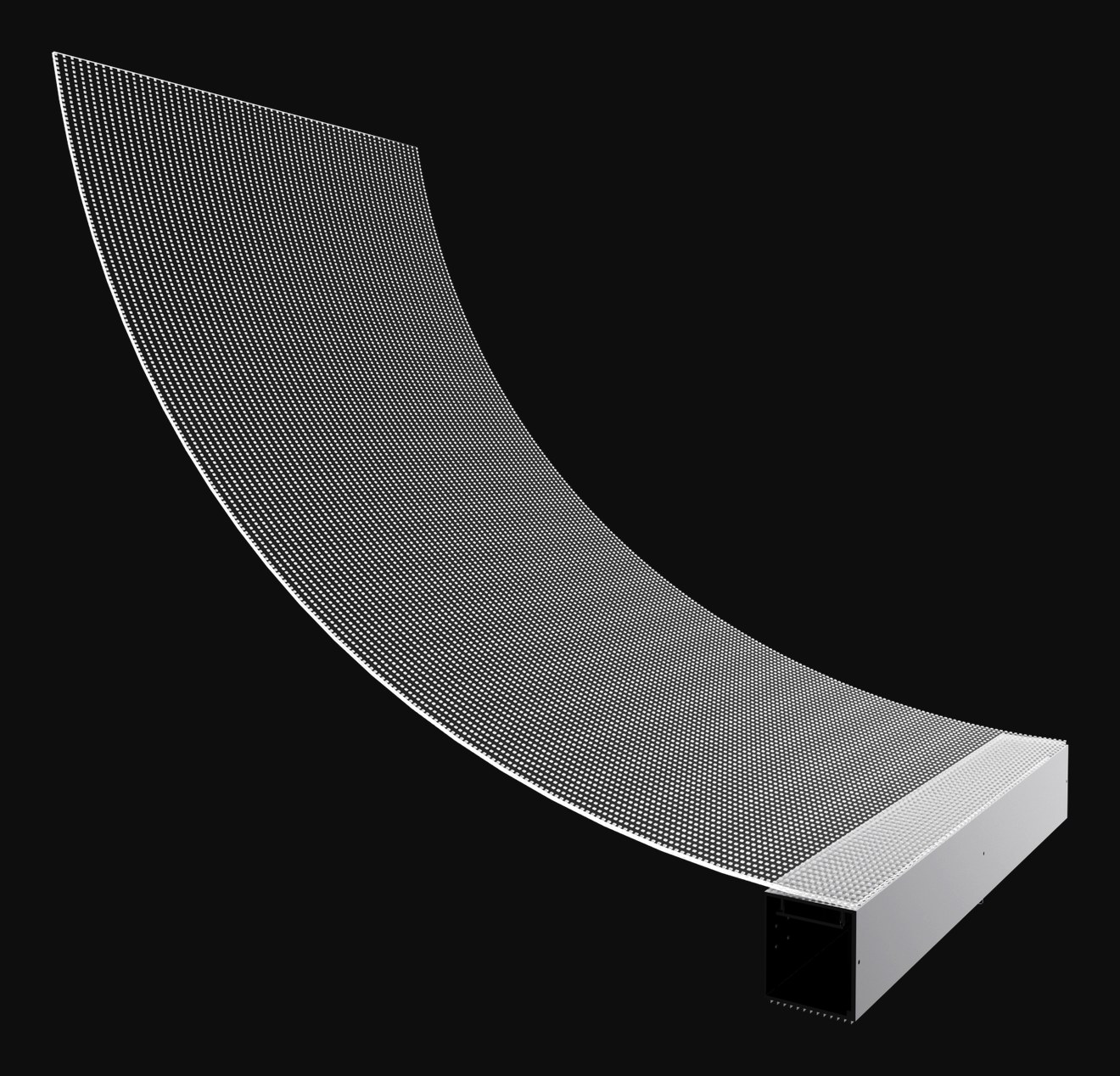

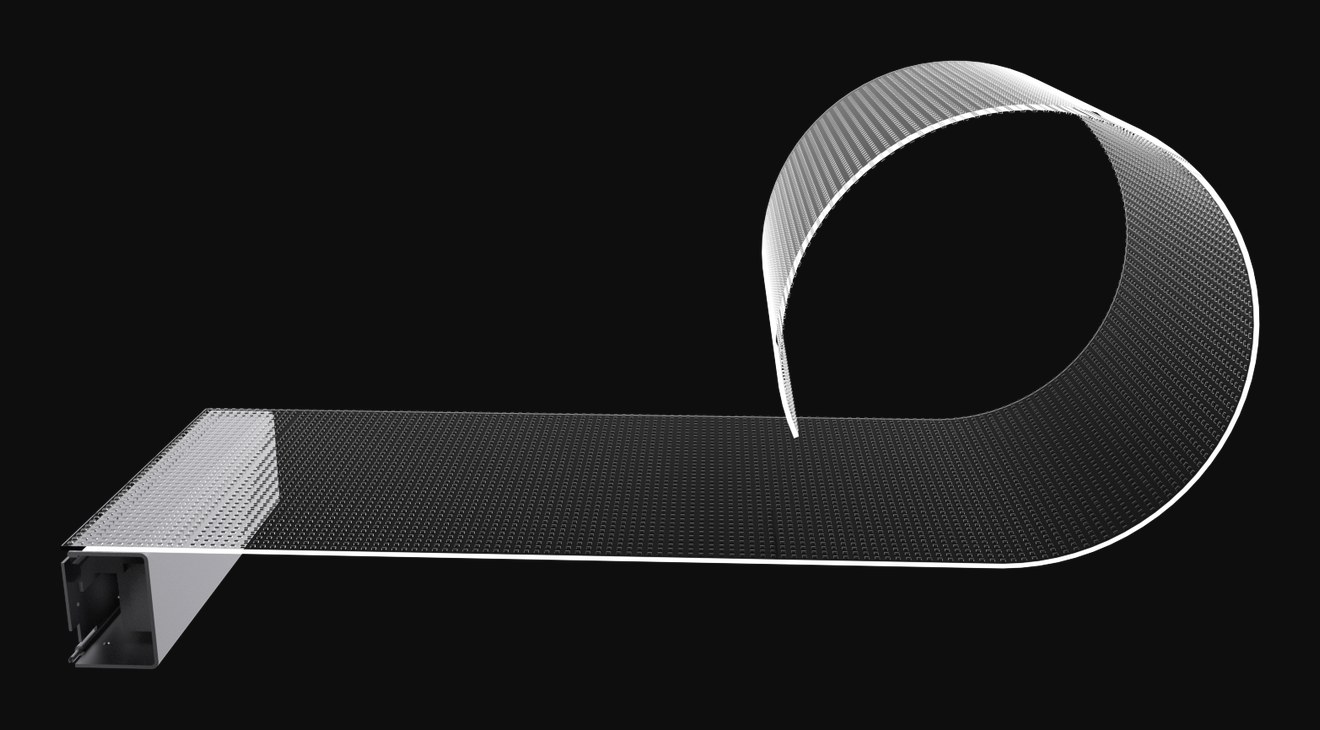

The panel rolls into a column. That is not a party trick. It is the reason a curved shopfront, a round lobby feature or a cylindrical showcase can be wrapped without fabricating a curved frame for it.
It also means the film travels rolled rather than crated, which keeps freight on a large order closer to the cost of shipping paper than the cost of shipping cabinets.
If a section is damaged, breakpoint continuation keeps the rest of the run alive until it is replaced.
Where it earns its keep
Anywhere the glass is the product.

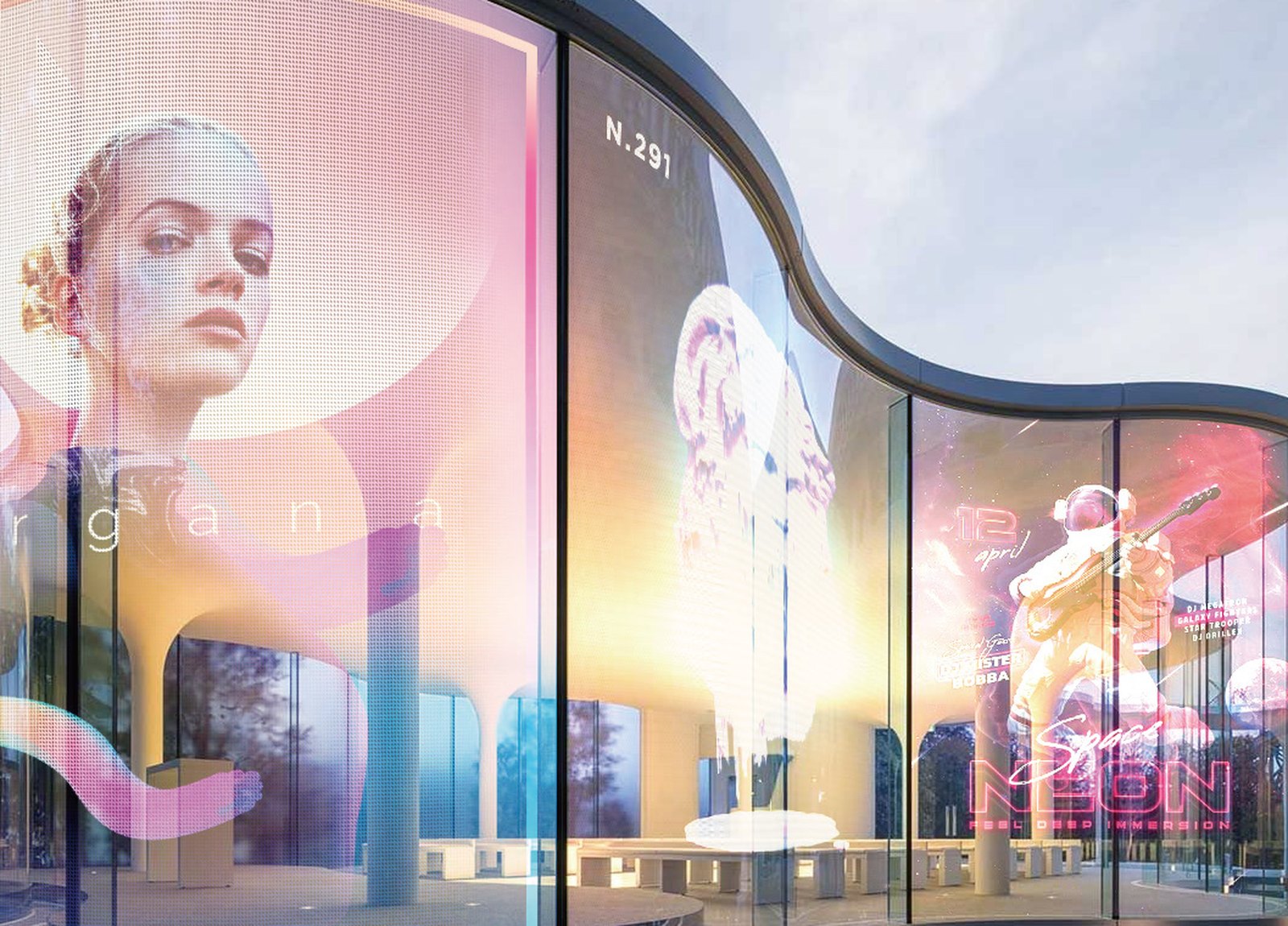

Retail windows
Full height motion on the shopfront without giving up the display behind it.
Lobbies and atriums
Curtain wall becomes a canvas, and the daylight stays.
Showrooms
Curved and cylindrical glass, wrapped without a custom frame.
Short run activations
Light enough to install and remove inside a tenancy or a campaign.
See it on the glass
Ninety seconds. Mounting, the flex of the substrate, and the film running on storefront, curtain wall and curved glass. Plays muted — unmute in the player for sound.
Specifications
Four pitches on a common 1000 × 240mm module. Note that HoloFilm 4×8 has a rectangular pixel spacing of 4 by 8mm, not a 4mm square pitch.
| Model | HoloFilm™ 4×8 | HoloFilm™ 6 | HoloFilm™ 8 | HoloFilm™ 10 |
|---|---|---|---|---|
| Pixel spacing | 4 × 8mm | 6 × 6mm | 8 × 8mm | 10 × 10mm |
| Transparency | 85% | 85% | 90% | 92% |
| Module size | 1000 × 240mm | 1000 × 240mm | 1000 × 240mm | 1000 × 240mm |
| Module pixels | 250 × 30 | 166 × 40 | 125 × 30 | 100 × 24 |
| Brightness | 2500 to 3500 nits | 3000 to 4000 | 3000 to 4000 | 3000 to 4000 |
| Viewing angle | 160° / 140° | 160° / 140° | 160° / 140° | 160° / 140° |
| Weight | 1.3kg | 1.3kg | 1.3kg | 1.3kg |
| Thickness | 2mm | 2mm | 2mm | 2mm |
| Peak power | 800W/m² | 800W/m² | 800W/m² | 800W/m² |
| Average power | 260W/m² | 260W/m² | 260W/m² | 260W/m² |
| Input voltage | AC110 to 240V | AC110 to 240V | AC110 to 240V | AC110 to 240V |
| Grey scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Refresh rate | 3840Hz and above | 3840Hz and above | 3840Hz and above | 3840Hz and above |
| Control system | Novastar | Novastar | Novastar | Novastar |
| Operating range | -20 to +50°C | -20 to +50°C | -20 to +50°C | -20 to +50°C |
Flexible enough to roll into a column. Flame retardant to grade V1. UV resistant, rated at 5 to 10 years without yellowing. Breakpoint continuation keeps the rest of the run alive if one section is damaged.
Light and thin, and it stays that way at scale
At 5kg per square metre a HoloFilm wall weighs a fraction of a conventional cabinet build, which is often what decides whether an existing facade can carry it at all.
No steel structure is required. Apply the film to the glass, connect power and signal, and the run is live.
Tell us about the glass
Send us the dimensions, whether the surface is flat or curved, and how far the viewer stands back. We will come back with the right pitch, the module layout and what it takes to install.
